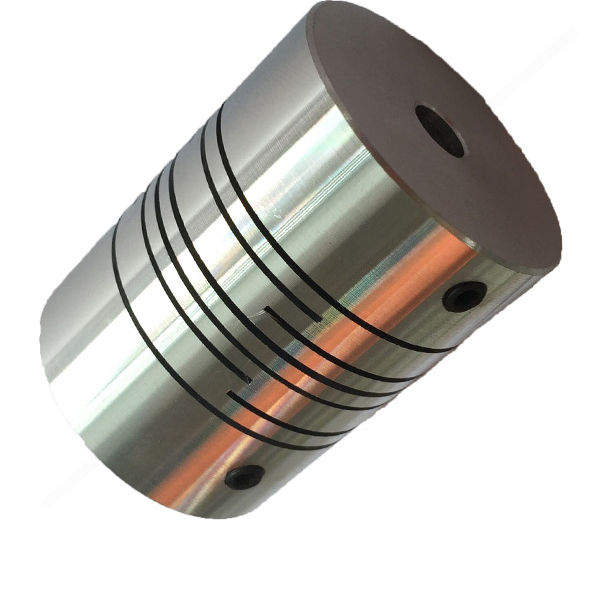

TS4 beam coupling For Sale

Product Description

A beam coupling, also known as helical coupling, is a flexible coupling for transmitting torque between two shafts while allowing for angular misalignment, parallel offset and even axial motion, of one shaft relative to the other. This design utilizes a single piece of material and becomes flexible by removal of material along a spiral path resulting in a curved flexible beam of helical shape. Since it is made from a single piece of material, the Beam Style coupling does not exhibit the backlash found in some multi-piece couplings. Another advantage of being an all machined coupling is the possibility to incorporate features into the final product while still keep the single piece integrity.

Features of TS4 beam coupling:

1.One-piece metallic beam coupling

2.Zero backlash

3.Absorb parallel,angular and axial misalignments

4.Identical clockwise and anticlockwise rotational characteristics

5.Material:Aluminum alloy and stainless steel

6.Set screw type

HangZhou EPT Couplings Co., Ltd.-HangZhou EPT Couplings Co., Ltd.

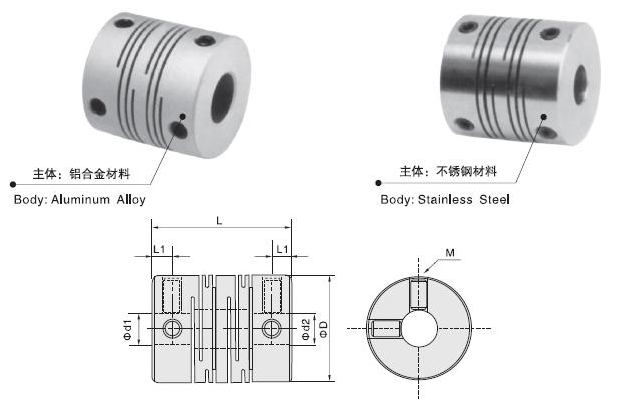

Model	Φ d1Φd2 Bore diameter	ΦD	L	L1	M	Wrench Torque N·m
TS4-M15 STS4-M15	3 4 5	15.5	21	2.6	M3	0.7
TS4-15 STS4-15	3 4 5	15.5	23	3.1	M3	0.7
TS4-17 STS4-17	4 5 6	17.5	23	3.1	M3	0.7
TS4-19 STS4-19	5 6 6.35 8	19.5	24.5	3.5	M4	1.5
TS4-25 STS4-25	7 10 8 10	25.4	25.4	3.55	M4	1.7
TS4-28 STS4-28	6 8 10 12.7	28.6	28.6	3.60	M5	1.7
TS4-38 STS4-38	8 10 12 12.7 14 15	38.1	38.1	4.15	M5	3.8
TS4-50 STS4-50	12 12.7 14 15 16 19	50.8	50.8	5.25	M6	4.0

HangZhou EPT Couplings Co., Ltd.-HangZhou EPT Couplings Co., Ltd.

Model	Rated Torque (N·m)	Max.Torque (N·m)	Max.Rotational Frequency (rpm)	Moment of inertia kg·m2	Static Torsioral Stiffness N m/rad	Parallel misalignment mm	Angular misalignment	Axial misalignment mm	Mass g
TS4-M15	0.2	0.4	13000	3.0×10-3	35	0.1	1.5	±0.15	10
TS4-15	0.2	0.4	13000	3.2×10-3	36	0.1	1.5	±0.15	10
TS4-17	0.3	0.6	12000	6.1×10-3	65	0.1	1.5	±0.25	12
TS4-19	0.4	0.8	10000	8.5×10-3	100	0.1	1.5	±0.25	14
STS4-M15	0.3	0.6	13000	8.7×10-3	70	0.1	1.5	±0.15	28
STS4-15	0.3	0.6	13000	8.9×10-3	72	0.1	1.5	±0.15	30
STS4-17	0.4	0.8	12000	1.5×10-3	180	0.1	1.5	±0.25	34
STS4-19	0.9	1.8	10000	2.0×10-3	205	0.1	1.5	±0.25	40
TS4-25	1.2	2.4	10000	2.6×10-3	170	0.1	1.5	±0.15	26
TS4-28	1.6	3.2	8000	4.9×10-3	260	0.1	1.5	±0.15	42
TS4-38	4.2	8.4	8000	1.9×10-3	330	0.15	1.5	±0.15	76
TS4-50	9.0	GEARBOX EFFICIENCY The operating efficiency of worm-gear reducers ranges from 50% to as high as 95%. A number of factors influence efficiency, including ratio, input speed, tooth geometry, and lubrication. By far, the most important of these is ratio. A lower-ratio unit (5:1 for example) has more threads on the worm and a higher helix angle compared to a high-ratio unit. Higher helix angles mean less sliding friction and hence, higher efficiency. By comparison, helical gears typically have a 98% efficiency per gear mesh. For example, a double-reduction helical reducer has an efficiency approximately 0.98 3 0.98 = 96%. 18.0	6000	8.9×10-3	560	0.15	1.5	±0.15	128
STS4-25	2.2	4.4	10000	6.8×10-3	320	0.1	1.5	±0.15	74
STS4-28	3.1	6.2	8000	2.22×10-3	790	0.1	1.5	±0.15	118
STS4-38	7.5	15.0	8000	8.2×10-3	980	0.15	1.5	±0.15	212
STS4-50	14.0	28.0	6000	2.1×10-3	1450	0.15	1.5	±0.15	358
